Laboratory Equipment

SpinChem® jacketed flower-baffled reaction vessels ensure optimal performance of your rotating bed reactor. Find robust laboratory stands and durable overhead stirrer motors perfectly fitted for RBR:s in classic lab setups.

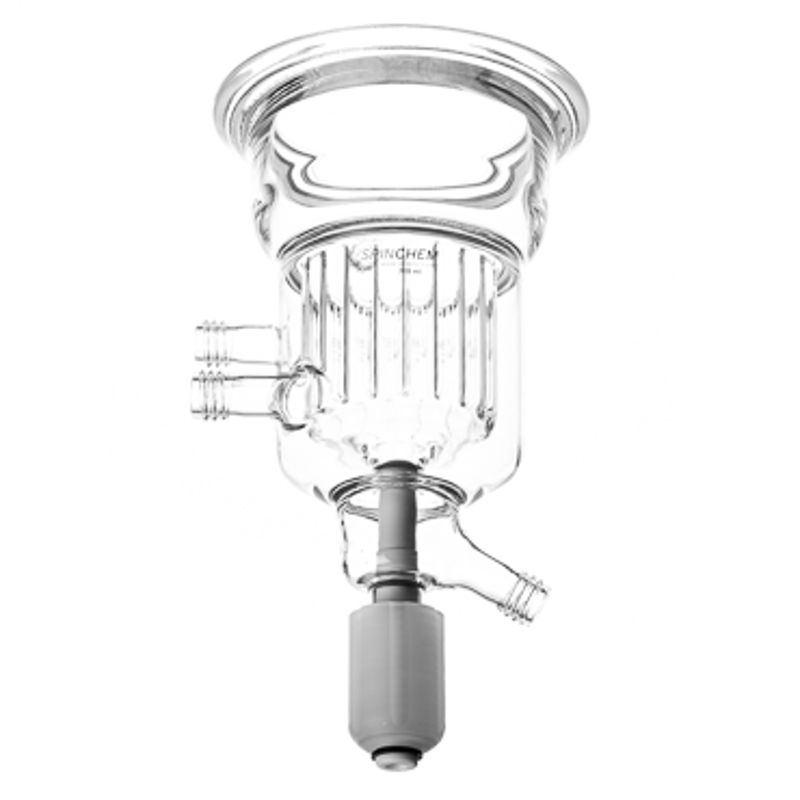

SpinChem® Vessel V2

SKU: 2221-001 High-clarity glass flower-baffled jacketed reaction vessel DN100 for 100-300 mL applications — perfect for small-scale processing with excellent thermal control and chemical durability. €935

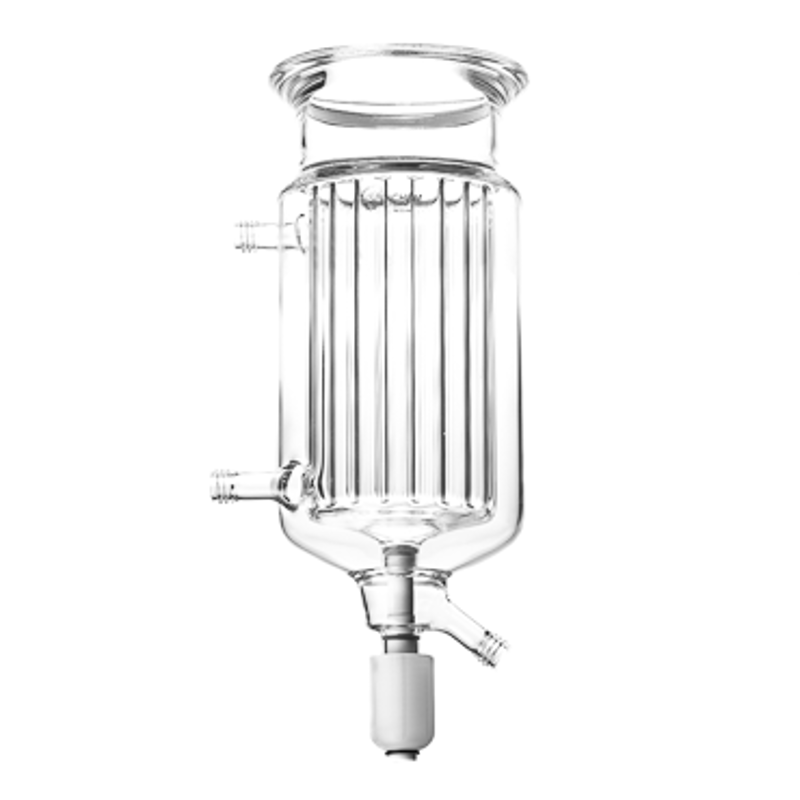

SpinChem® Vessel V3

SKU: 2321-001 Robust and reliable SpinChem® flower-baffled jacketed reaction vessel with bottom drain designed for chemical processes, advanced monitoring and thermal control. Vessel volume range up to 1500 ml. You can now purchase directly via our secure B2B webshop — with support for Purchase Orders (PO) for faster internal processing. €1,355

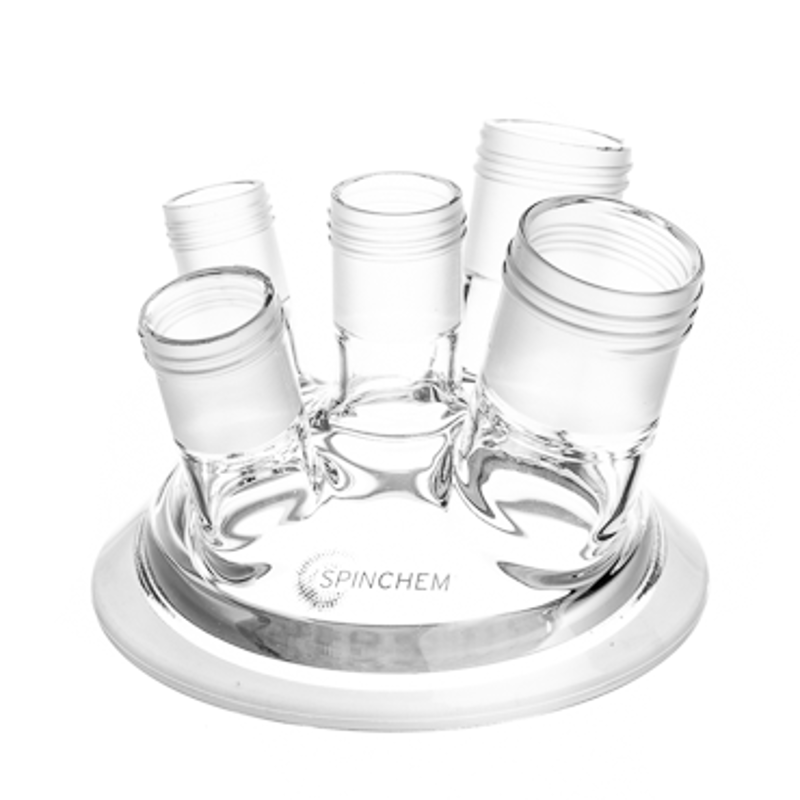

Lid for V2 and V3

SKU: 2910-001 Professional-grade vessel lid designed to ensure secure sealing, reliable containment, and safe operation during chemical reactions. 5 Neck lid DN100 with straight B24 and angled B34, B29, B24, B19. Supplied with Rodaviss® caps for secure, high-temperature chemical processing and real-time monitoring. €704

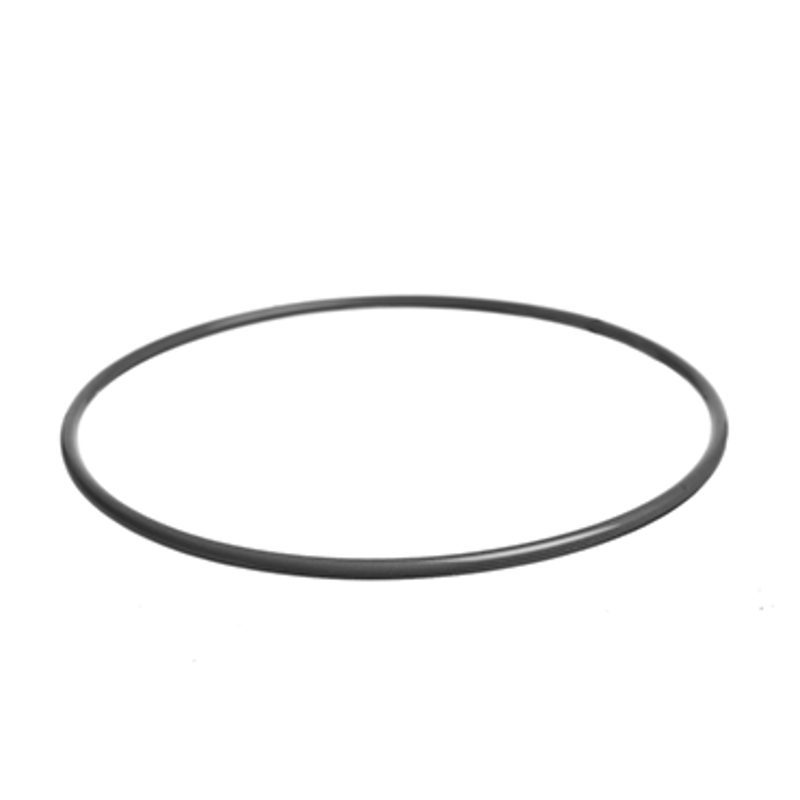

Sealing solution showing rubber gasket and mounting ring

SpinChem® Vessel Seals

SKU: 2910-201 Prevent leaks and ensure airtight containment with SpinChem® vessel seals — precision-fit for V2 and V3 systems, built for demanding lab and process conditions. FEP coated silicone O-ring for DN100 vessels. Used for the Vessel V2 and Vessel V3. €48

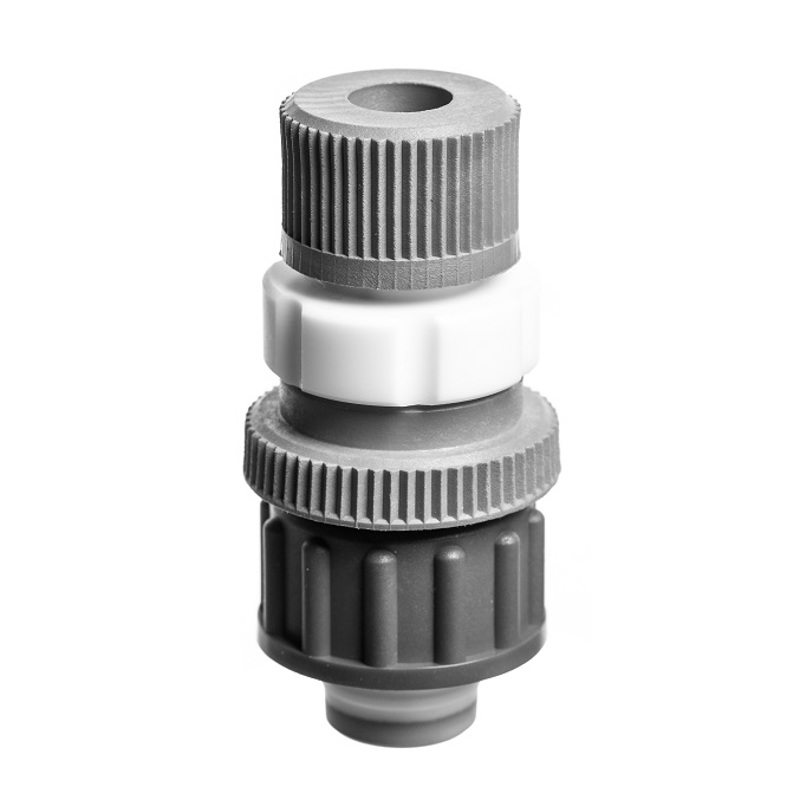

Close-up view of a SpinChem shaft guide B24 showing its multi-component design with grey ribbed adjustment rings, a white central PTFE bearing section, and precision-engineered shaft alignment mechanism, photographed against a white background in monochrome.

Shaft Guide B24

SKU: 2910-301 Maintain optimal shaft positioning and reduce vibration with the SpinChem® B24 guide -engineered for stability, precision, and long-lasting performance. Shaft guide B24 for 10 mm stirring shafts, used for the RBR S2 and RBR S3. Rodaviss® fitting. Holds vacuum down to 10 mbar. €132

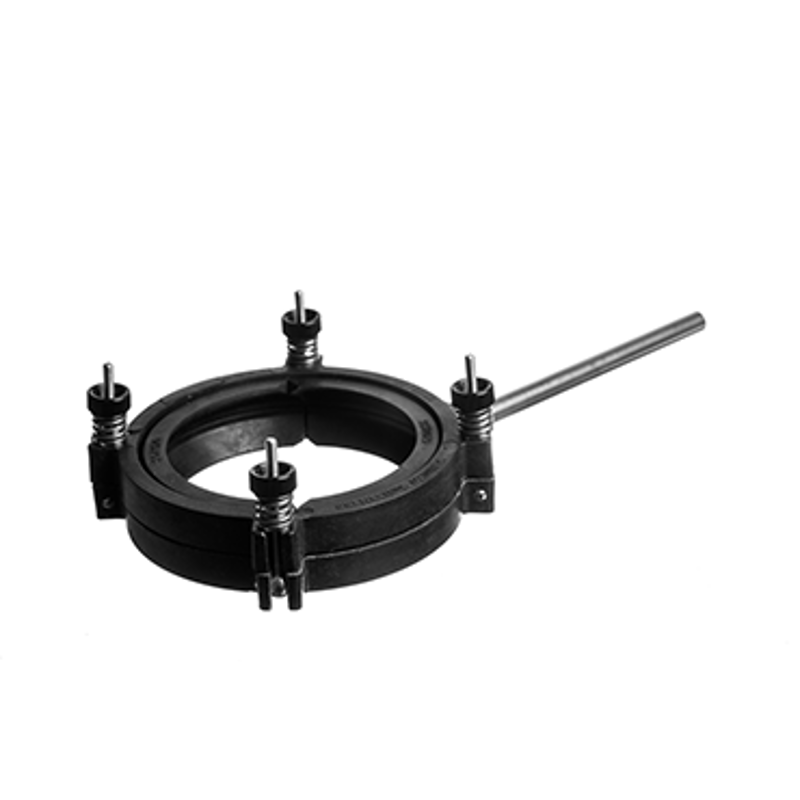

Holder for V2 and V3

SKU: 2311-501 A reactor holder for DN100 vessels, such as the Vessel V2 and Vessel V3. Attaches conveniently to our laboratory stand €321

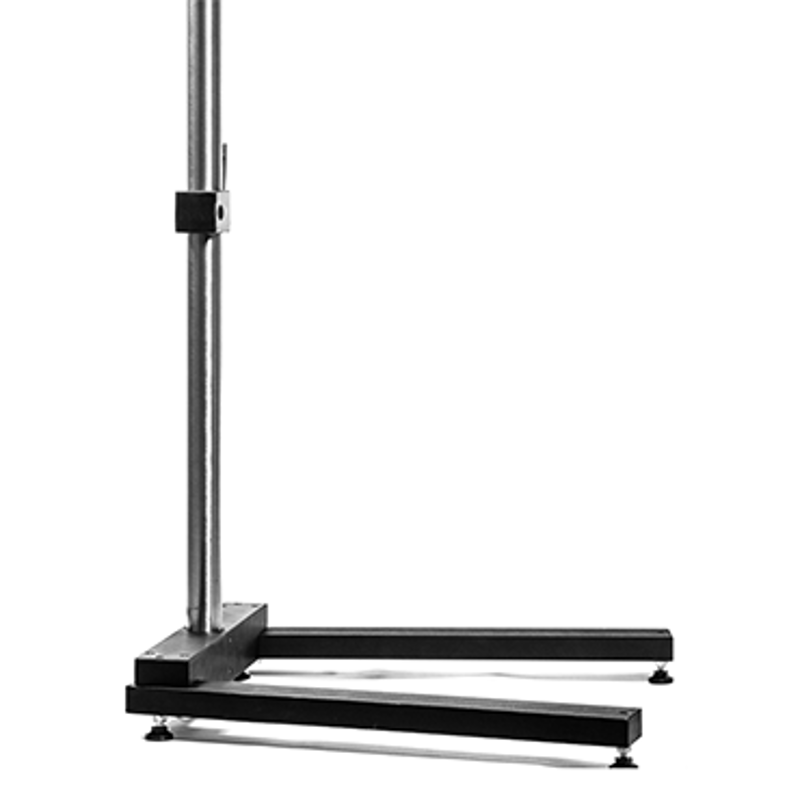

Black anodized aluminum laboratory stand featuring a vertical stainless steel support rod mounted on a sturdy H-shaped base with adjustable feet. The minimalist design includes a mounting block for attaching laboratory equipment.

Laboratory Stand

SKU: 3100-001 Achieve reliable stability and safer operation with SpinChem®'s professional-grade stand — ideal for RBR systems and lab-scale chemical processes. Complete laboratory stand in anodized aluminium including adjustable blocks, used to attach the reactor holder and a stirrer motor.The height (1100 mm) is suitable for working in fumehoods. €620

Control Unit 230 V

SKU: 3400-001 Control unit for magnetic stirrer with four different power settings (25%, 50%, 75%, 100%), and an automatic memory function for the last used settings. €762

Magnetic Stirrer

SKU: 3406-001 Waterproof magnetic stirrer. Compatible with water baths, oil baths, incubators and ovens up to +50 °C. Six stirring positions. €972

Tube Rack (6 pos.)

SKU: 3406-101 Tube rack in stainless steel with sockets for docking the SpinChem® Magnetic stirrer, and with handles for lifting. 6 tube positions. €105

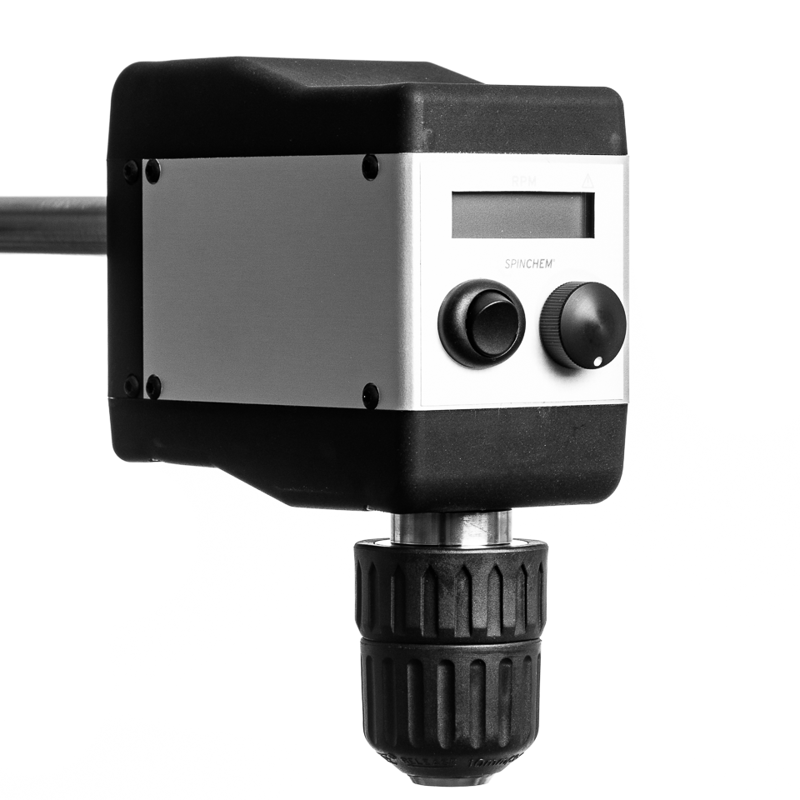

Close-up view of a SpinChem 60W stirrer motor featuring a black and white housing with digital display screen and two control knobs on the front panel. The motor unit includes a black chuck mechanism for secure shaft mounting, shown against a white background in monochrome.

Stirrer Motor 60W

SKU: 3300-002 Achieve consistent and reliable chemical mixing with SpinChem’s 60W laboratory motor — designed for accurate control and smooth stirring performance. The brushless overhead stirrer motor allows silent continuous duty, and features speed control indicated on the display and a keyless chuck for attaching the rotating bed reactor. The motor is controllable by computer through the serial interface (RS232 cable required). Available for 230V and 115V. €1040
