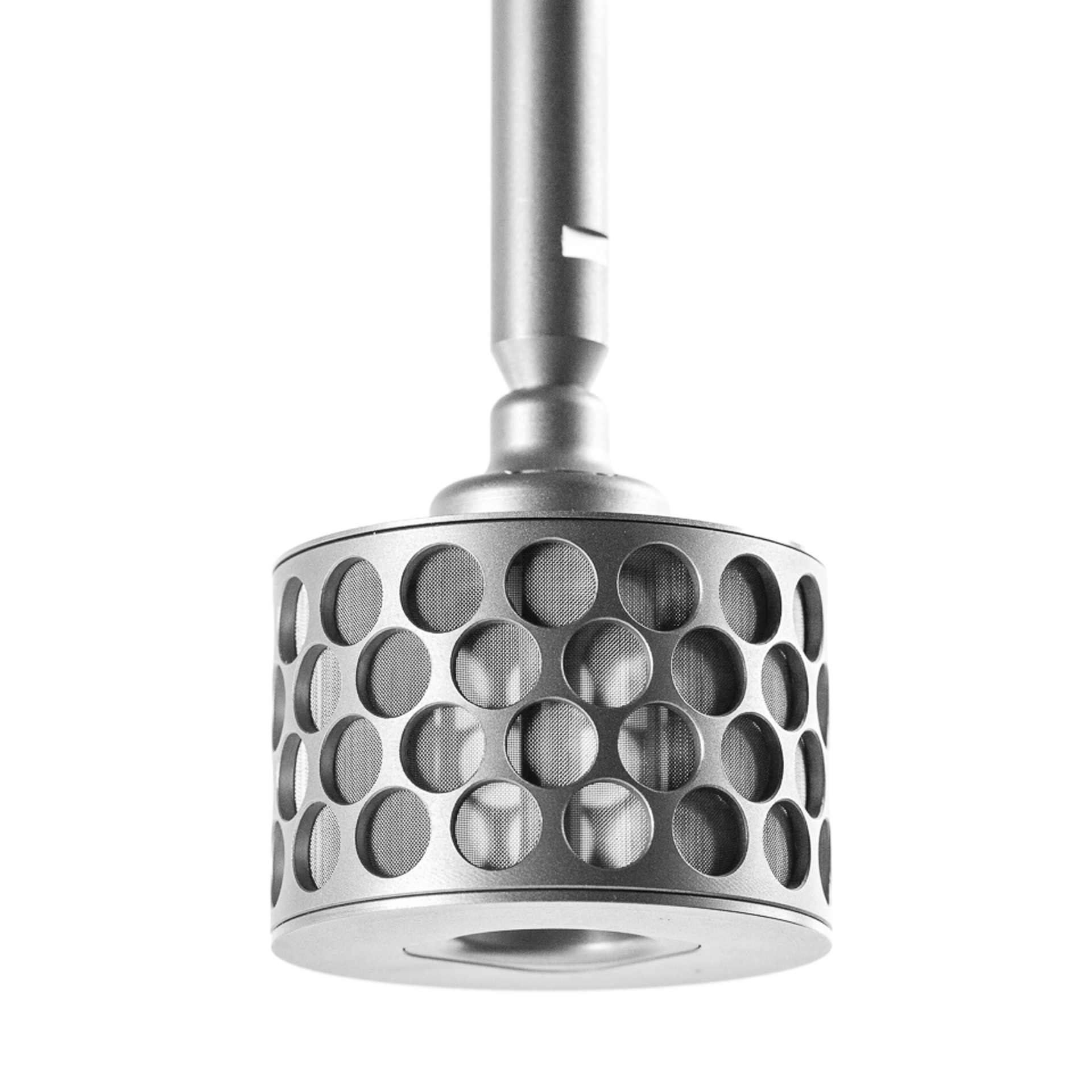

Rotating bed reactor used for biocatalysis in lab setting

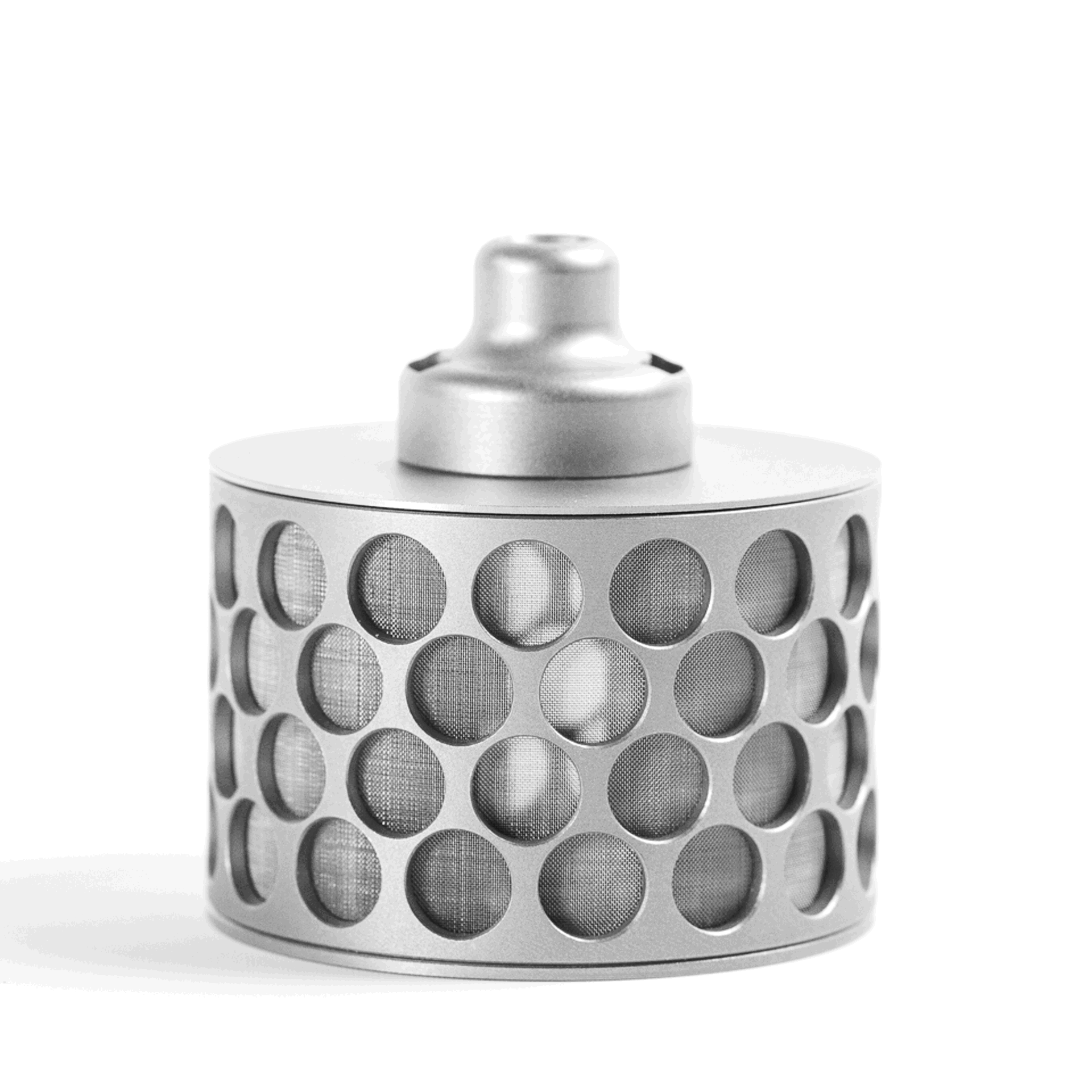

Close up view of SpinChem Rotating bed reactor without a shaft

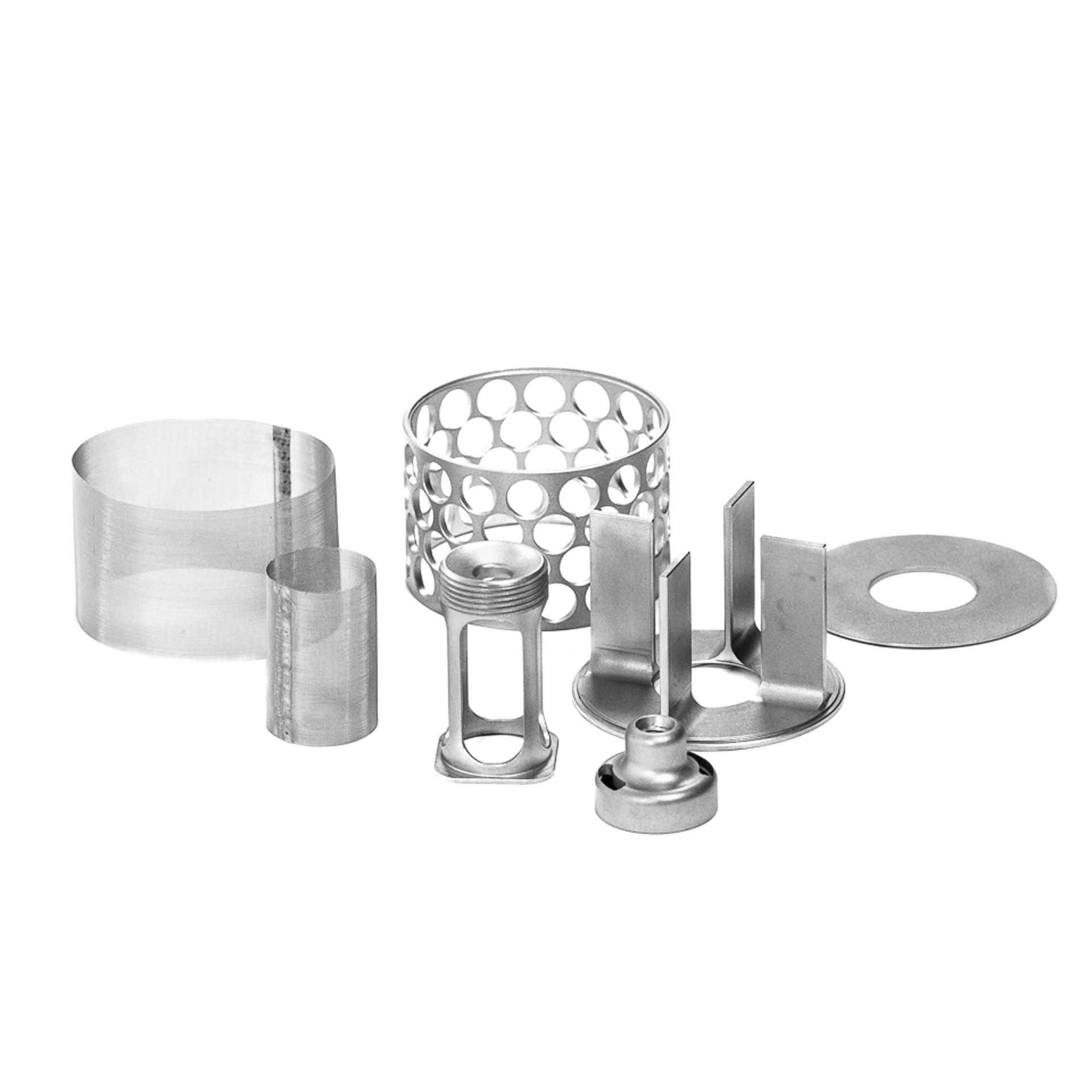

Components of rotating bed reactor S2

SpinChem® RBR S2

The SpinChem® RBR S2 is an innovative technology designed for efficient and scalable heterogeneous reactions in laboratory settings.

Engineered for use in vessels ranging from 100 to 500 mL, this reactor enhances mass transfer processes, making it ideal for applications in biocatalysis, chemical synthesis, and environmental engineering.

You can now purchase directly via our secure B2B webshop — with support for Purchase Orders (PO) for faster internal processing.

€3,717 (excluding accessories such as shaft, filters, and assembly tools)

Specifications

  1. Material
  2. Stainless Steel (SS316L, EN2348)
  3. Height
  4. 30 mm
  5. Diameter
  6. 45 mm
  7. Porosity
  8. 104 µm
  9. Volume
  10. 28 mL
  11. Shaft Length
  12. 38 cm
  13. Shaft Diameter
  14. 10 mm
  15. Vessel Volume Range
  16. 100-500 mL
  17. Weight
  18. 85 g (317 g including shaft)
  19. Rotational Direction
  20. Counterclockwise
  21. Rotational Speed
  22. 300-1000 rpm (maximum 500 rpm continuously when shaft guide is used!)

Accessories

Shaft for S2

Filter kit for S2

Assembly tools for S2

Applications

Biocatalysis in rotating bed reactors - from screening to production, Modularized biocatalysis: Immobilization of whole cells for preparative applications in microaqueous organic solvents, Rotating Bed Reactor S2, Transfer hydrogenation with catalyst recycling in a rotating bed reactor, Phenol scavenging using ion-exchange resin, Intensification of Biocatalytic Oxidation Under Fine Bubble Aeration in a Rotating Bed Reactor, Intensified, Kilogram-Scaled, and Environment-Friendly: Chemoenzymatic Synthesis of Bio-Based Acylated Hydroxystyrenes

Specification sheet
Video assembly guide
RBR S2 Starter Kit Assembly Guide & Operating Instructions
