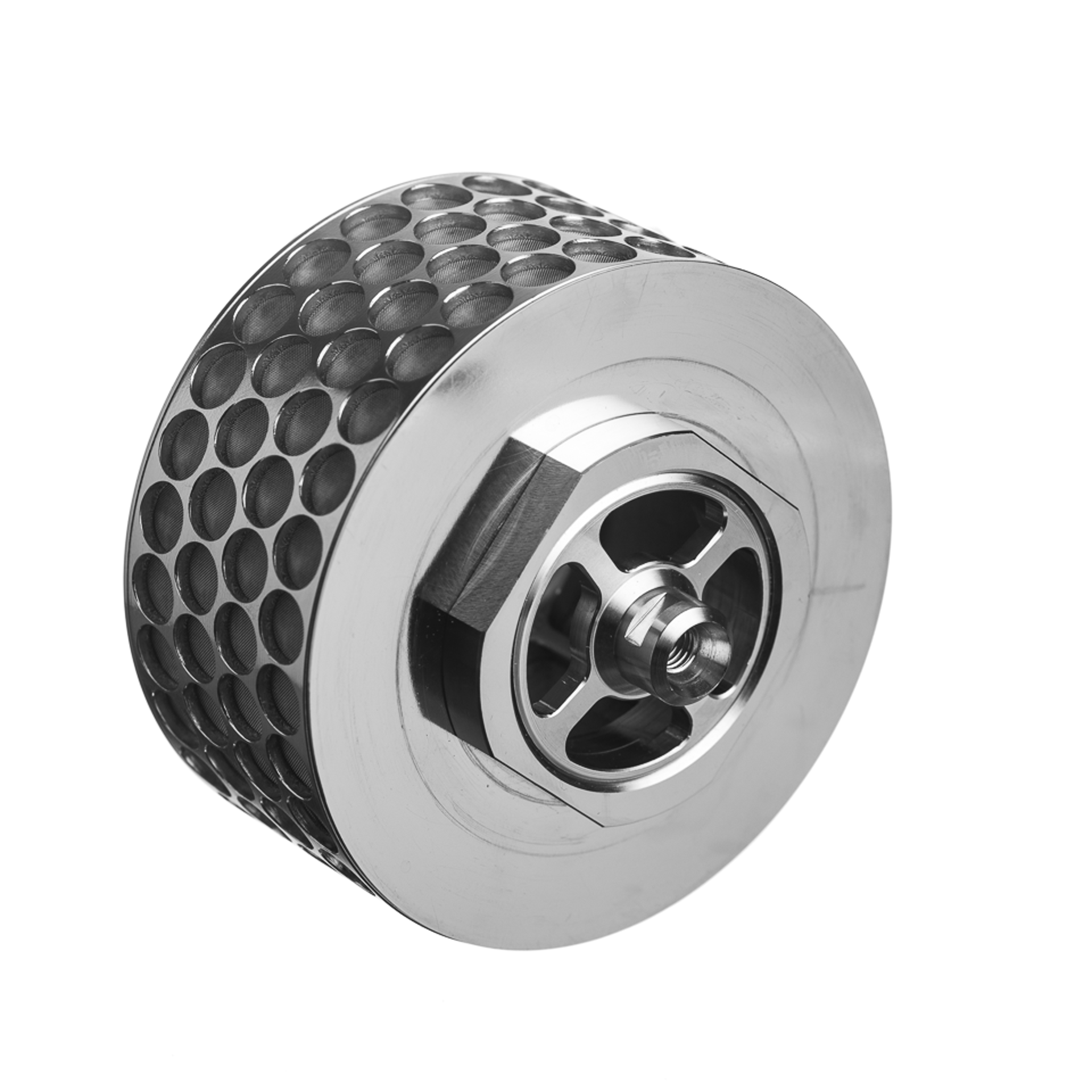

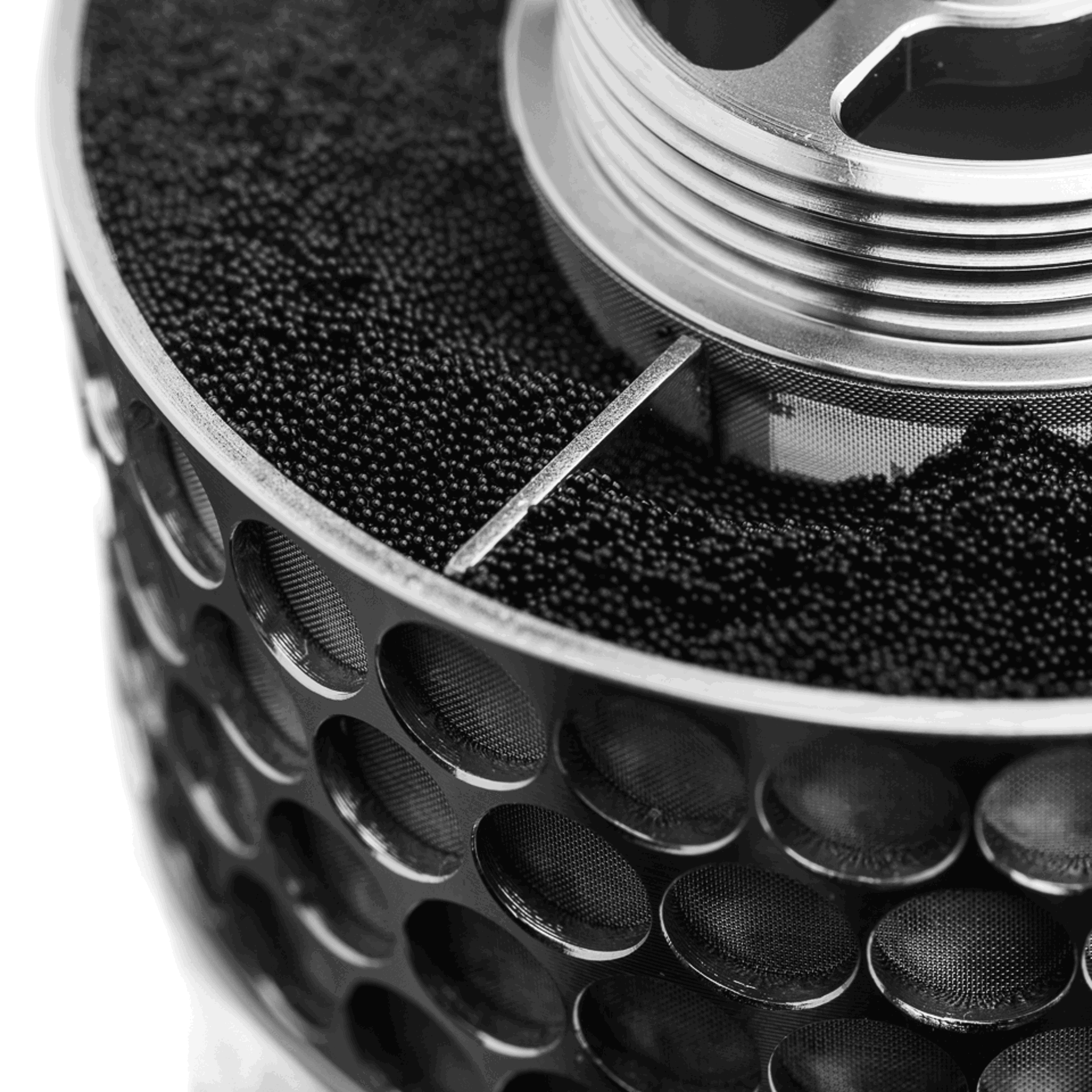

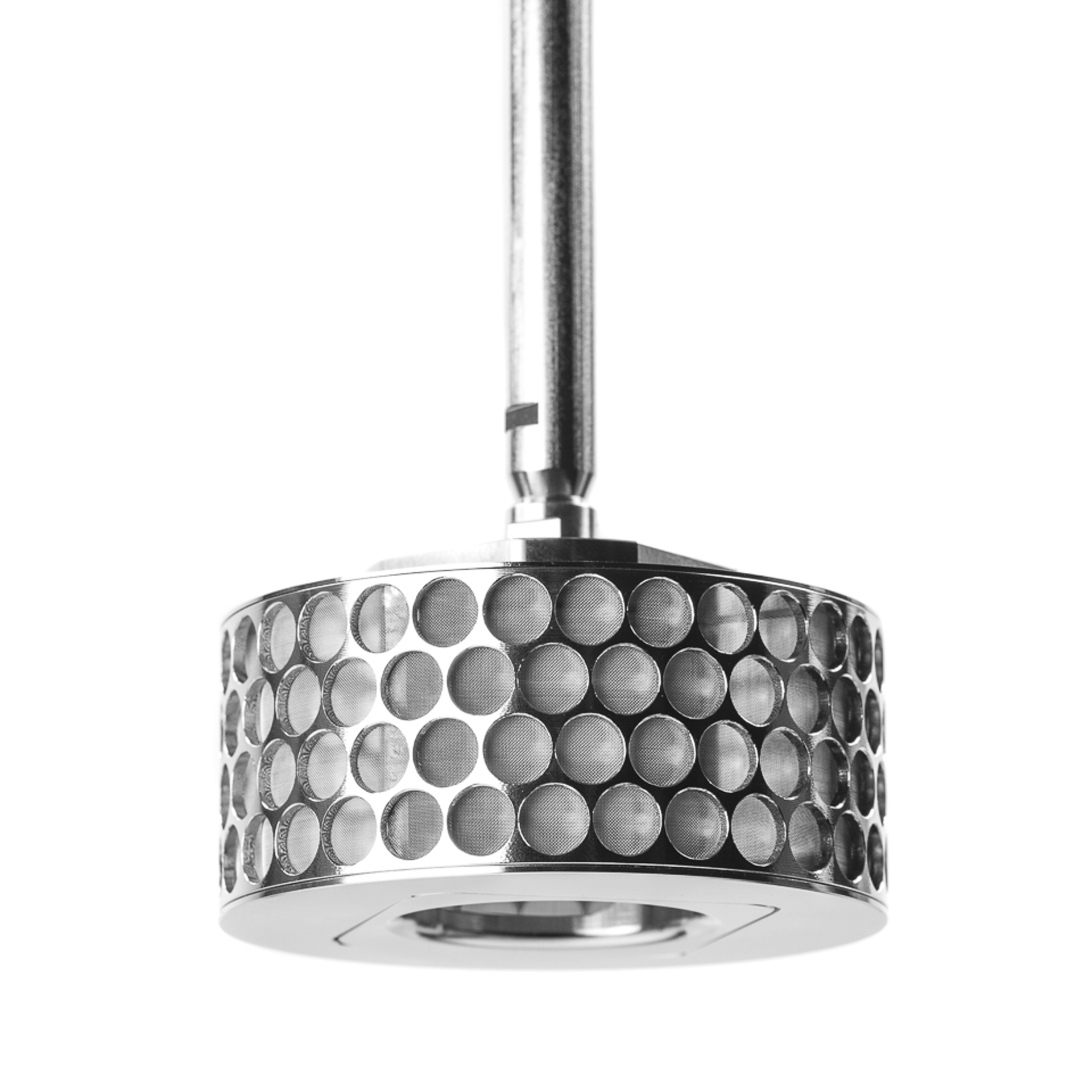

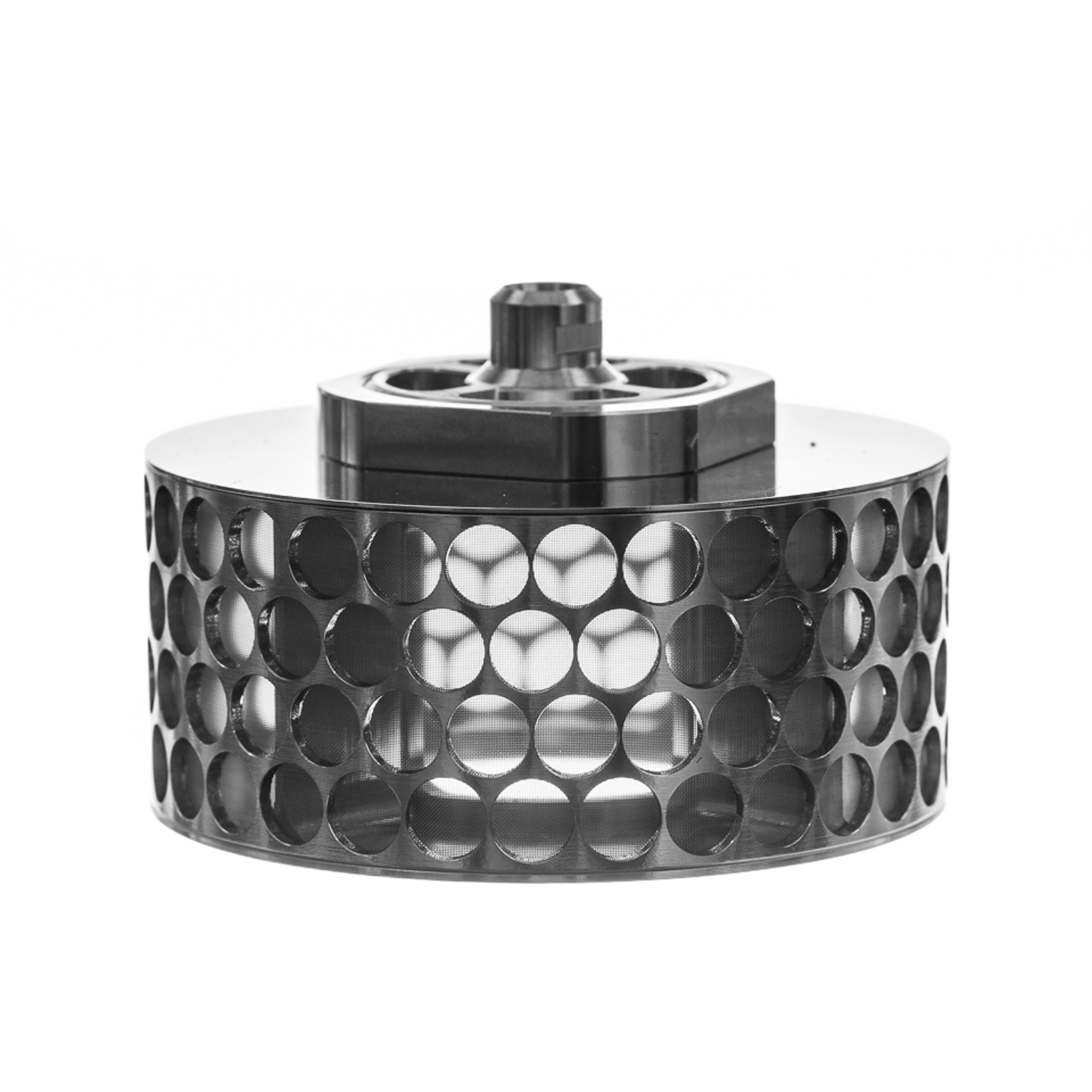

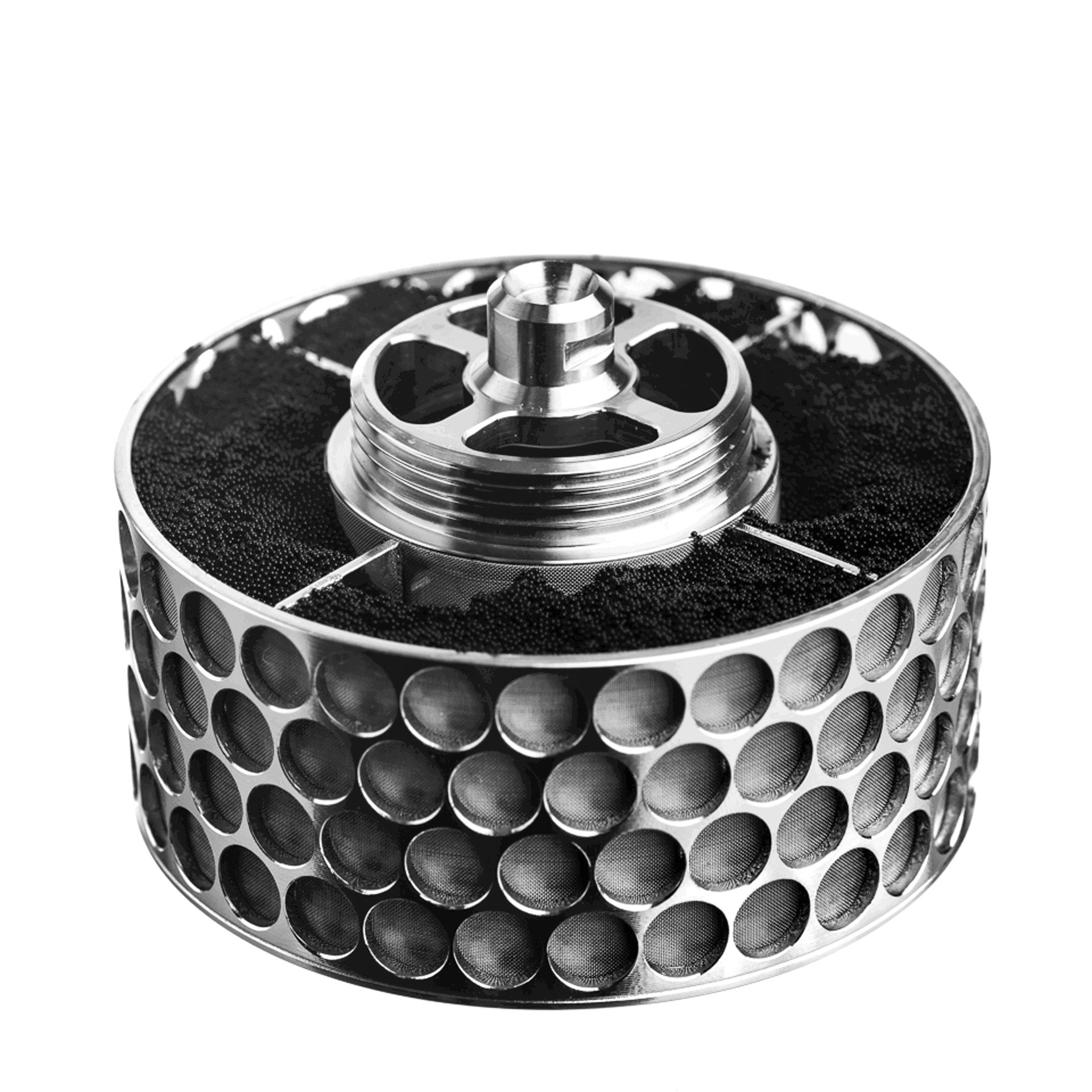

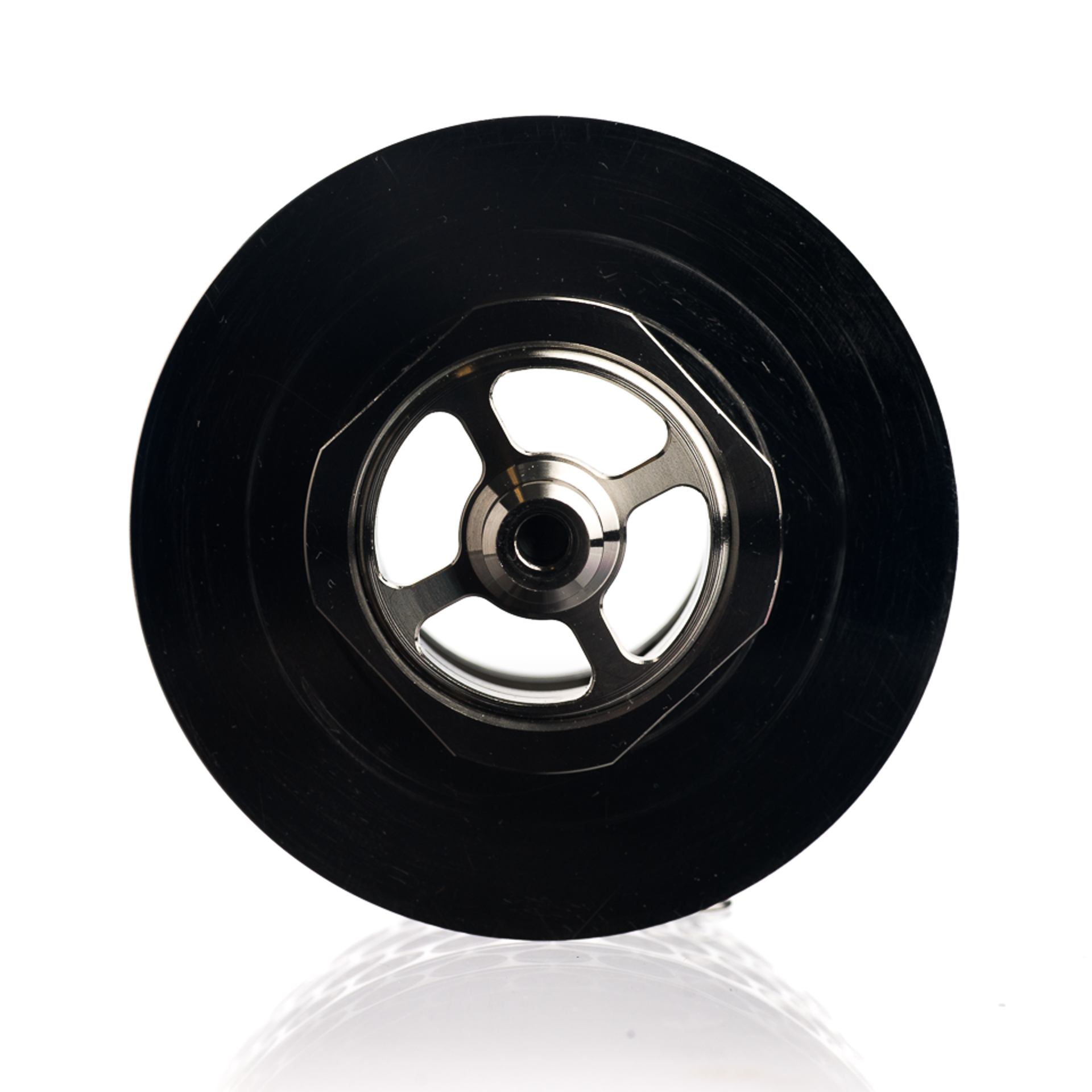

SpinChem® RBR S3

The SpinChem® Rotating Bed Reactor S3 is an innovative solution for heterogeneous catalysis and biocatalysis, designed to significantly enhance mass transfer in chemical processes. The S3 offers a significant upgrade in capacity compared to the S2 model, making it ideal for processes that demand higher throughput and greater solid-phase volumes. While S2 model suited for smaller-scale, high-precision tasks, S3 model is an optimized for larger-scale applications, accommodating more solid phase material to support extended and intensive reactions. Suitable for 300-2000 mL vessels.

€3,780 (excluding accessories such as shaft, filters, and assembly tools)

Specifications

  1. Material
  2. Stainless Steel (SS316L, EN2348)
  3. Height
  4. 30 mm
  5. Diameter
  6. 70 mm
  7. Porosity
  8. 104 µm
  9. Volume
  10. 69 mL
  11. Shaft Length
  12. 41 cm
  13. Shaft Diameter
  14. 10 mm
  15. Vessel Volume Range
  16. 300-2000 mL
  17. Weight
  18. 148 g (397 g including shaft)
  19. Rotational Direction
  20. Counterclockwise
  21. Rotational Speed
  22. 200-800 rpm (maximum 500 rpm continuously when shaft guide is used!)

Accessories

Shaft for S3

Filter kit for S3

Assembly tools for S3

Applications

Activated carbon decolorization, fast and without filtration, Automatic processes for efficient production, Rotating bed reactor faster than stirred tank reactor for a mass transfer limited reaction, High-viscosity applications made faster, Efficient synthesis of chiral lactones by encapsulated cells in a rotating bed reactor, Simple scale-up using flexible reactors, Rotating Bed Reactor S3 and S3+, SpinChem RBR Tips ‘n’ Tricks

Specification sheet
Video assembly guide
RBR S3 Starter Kit Assembly Guide & Operating Instructions
